Centerless Grinding Machines

Centreless Grinding-1

• Machine Name: Centreless Grinding-1
• Make: New Smith Grinders
• Model: Smith H 200
• Controller: Manual
• Grinding Wheel Size: 500 × 200 × 304
• Spindle Power: 15 kW
• Model Year: 2022
• Grinding Capacity :-
• 1.Work Diameter Range: 3 to 100 mm
• 2.Work Length: 100–1000 mm
• 3.Accuracy: ± 5 Micron

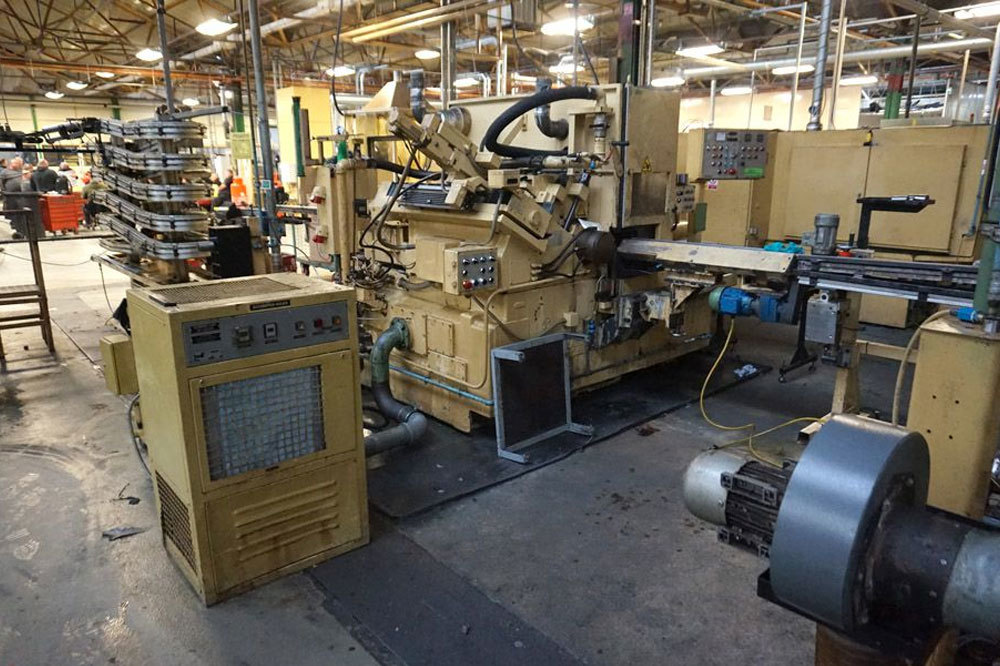

Centreless Grinding-2

• Machine Name : Centerless Grinding-2
• Make : New Life Machinery
• Model : Newlife-250
• Controller : Manual
• Grinding Wheel Size : 500 × 250 × 304
• Spindle Power : 15 kW
• Model Year : 2023
• Grinding Capacity :-
• 1.Work Diameter Range : 3 to 100 mm
• 2.Work Length : 100–1000 mm
• 3.Accuracy : ± 5 Micron

Centreless Grinding-3

• Machine Name : Centerless Grinding-3
• Make : NIPPEI
• Controller : Manual
• Grinding Wheel Size : 500 × 250 × 304
• Spindle Power : 20 kW
• Grinding Capacity :-
• 1.Work Diameter Range : 6 to 80 mm
• 2.Work Length : 100–1000 mm
• 3.Accuracy : ± 5 Micron
